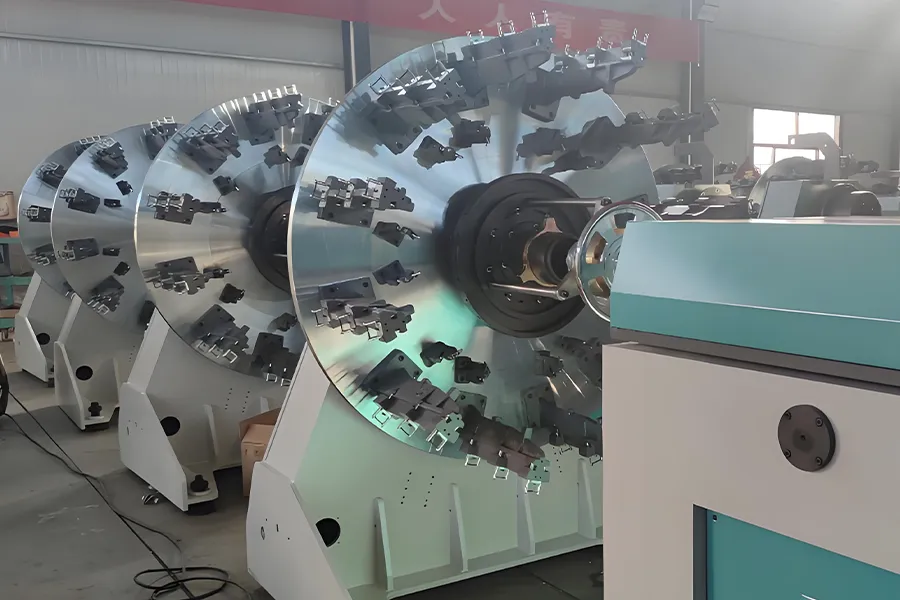

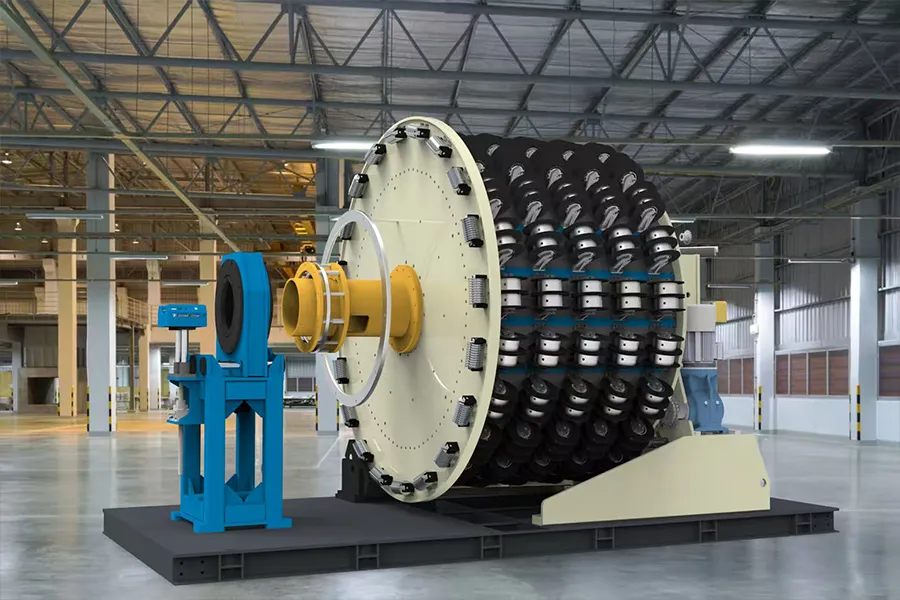

The wire winding machine is used for winding and packaging of wires such as steel wire, welding wire, and cables, with simulation to achieve good protection and decoration; it has the advantages of fast packaging speed, wide packaging range, and easy operation. The CNC high-speed wire winding machine adopts new on-machine forming technology and CNC pre-adjustment tension function under the machine, and adopts full CNC control, which greatly improves the winding accuracy and ensures the winding quality.
After the hose is vulcanized, the hose is transported to the back of the water cloth winding and unwinding machine, and the direction of the hose must be turned, which is unreasonable. In addition, since the angle of the unwinding spindle cannot be adjusted, the winding step shaft has a flange, which increases the imbalance of the rotating disk, and locking is also more troublesome. 2 Improvement measures 2.1 Cloth winding and unwinding mechanism The improved cloth winding and unwinding mechanism is shown in Figure 1. The large sprocket drives the hollow shaft to rotate, and the rotating disk is fixed on the hollow shaft. Adjusting the friction mechanism can change the force of the cloth winding roller gear relative to the large gear, thereby changing the tension of the cloth winding and unwinding.
