Special winding machine for oil drilling pipe and fracturing pipe
Special winding machine for oil drilling pipe and fracturing pipe
[ Overview ]
[ Technical Parameters ]
[ Overview ]

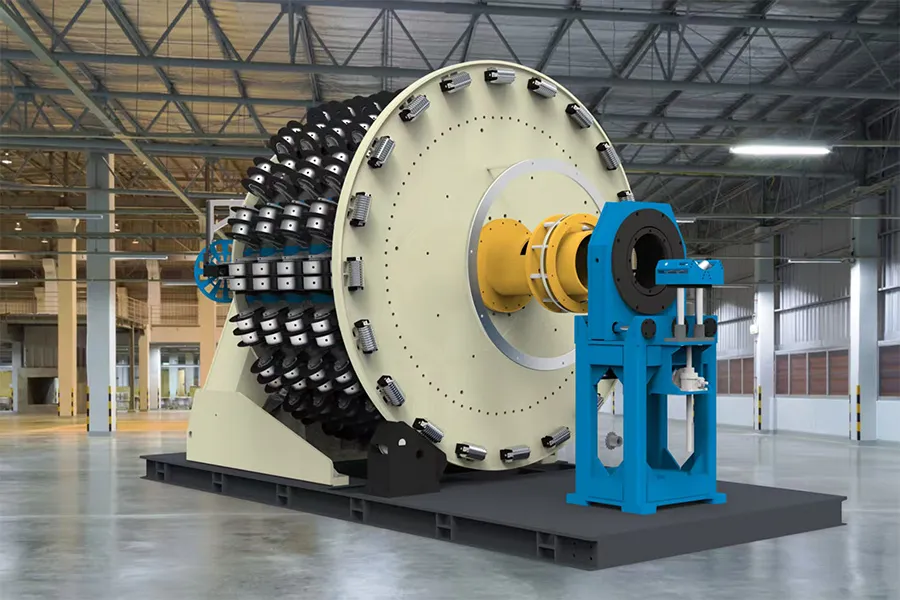

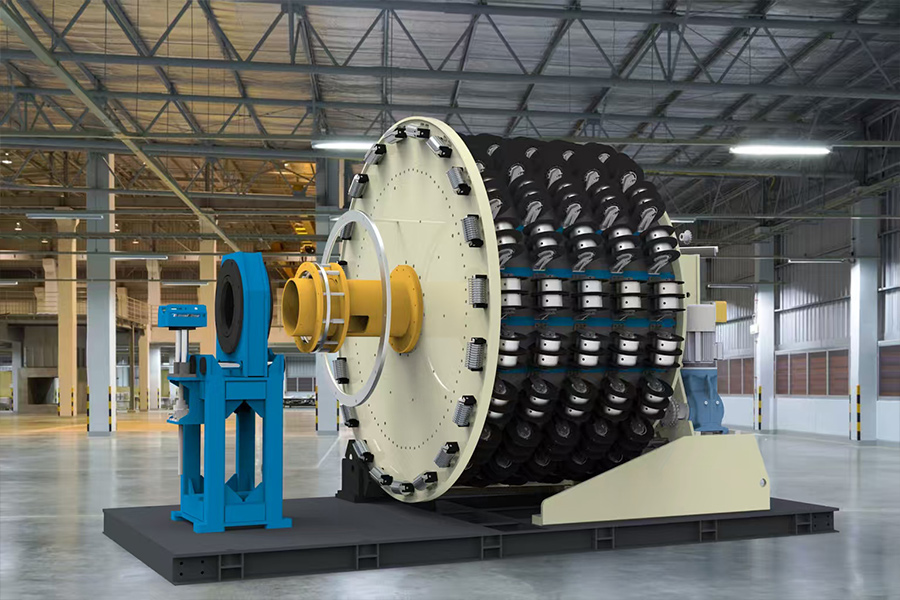

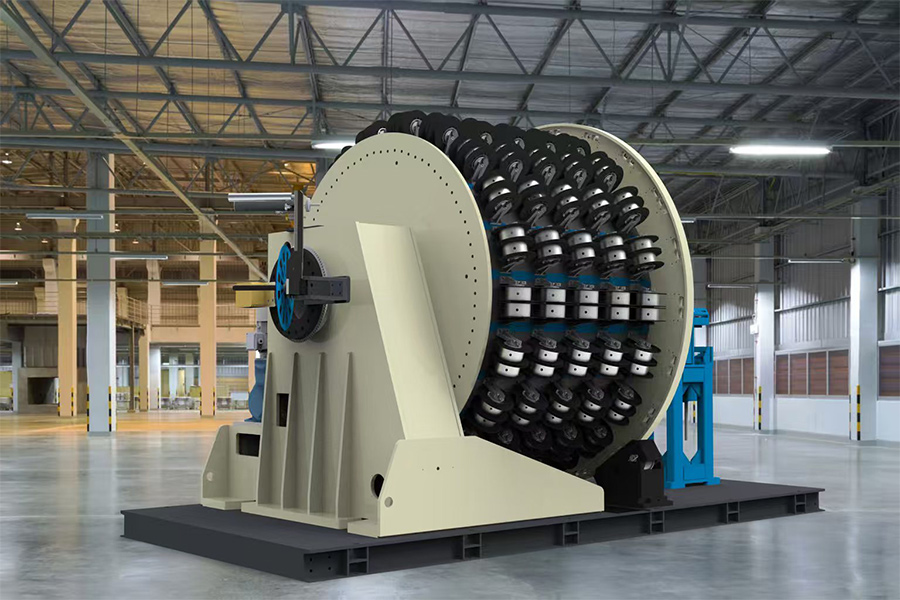

Special winding machine for oil drilling pipe and fracturing pipe. This equipment specializes in the production of oil drilling pipe, oil collection pipe and oil fracturing pipe. It has the characteristics of large single wire tension, balanced tension and straight wire running. The finished pipe body has the characteristics of high bursting pressure, which can better ensure the safety of drilling and fracturing operations. Because high-pressure pipes require large-diameter steel wires, our company's product can provide better tension and stress relief for steel wires with diameters of 1.8mm, 2.0mm and above, so that the steel wire can better fit the pipe body, so as to achieve high pressure on the pipe body, no shrinkage and no expansion of the pipe.
[ Technical Parameters ]
| 一、 | Winding diameter: 64-203mm. |
|---|---|
| 二、 | Number of ingots per tray: 220 ingots, 4 trays in total. |
| 三、 | Main engine speed: 18 rpm. |
| 四、 |
Traction line speed: 7.5 m/min (two traction machines in total). |
| 五、 | Spool specifications: outer diameter 250mm, inner diameter 114mm, thickness 79mm. Spool wire capacity: When the wire diameter is 1.4mm, the single-spool wire capacity is 1530 meters. |
| 六、 | Installed power: 106.5KW (main disk 15KW×4, main traction 9.5KW×2, auxiliary traction 7.5KW×2, middle rubber motor 2.2KW×4, mesh motor 3.7KW). |
| 七、 | Tension control: air pressure. |
| 八、 | Applicable steel cord: 0.8mm-2.0mm. |
| 九、 | Middle rubber coating method: independent electronic control, adjustable pitch, spiral coating mesh cloth Auxiliary machine: servo motor independent drive, connected with the main machine. |
| 十、 | Equipment specifications: 25.6 meters long, 3.3 meters wide, and 3.6 meters high (estimated). |
