Automatic pay-off stranding machine
Automatic pay-off stranding machine
[ Overview ]
[ Overview ]

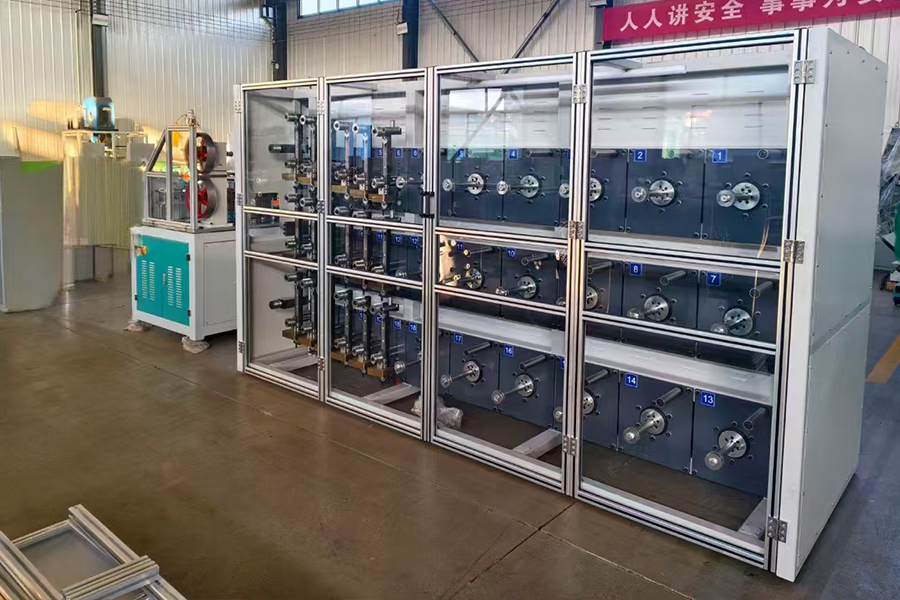

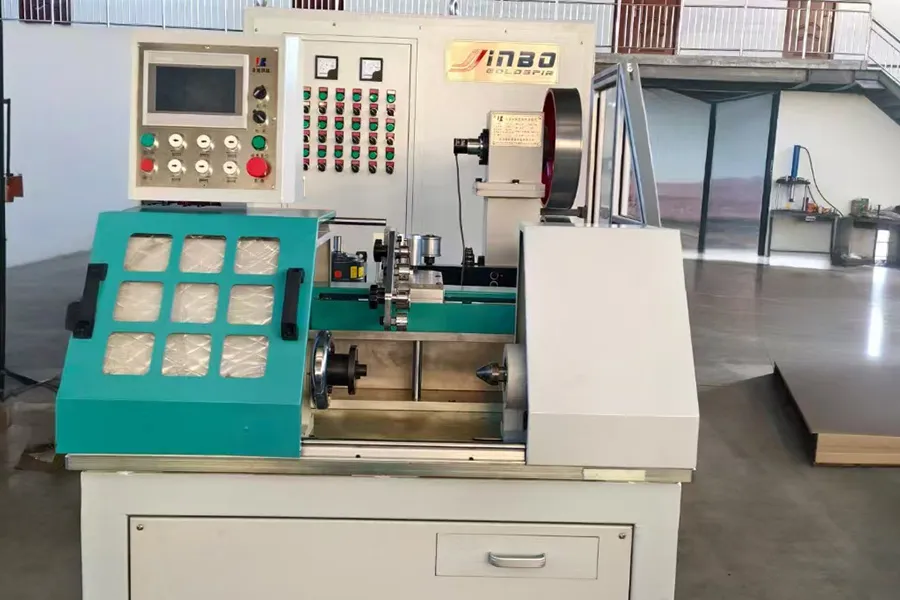

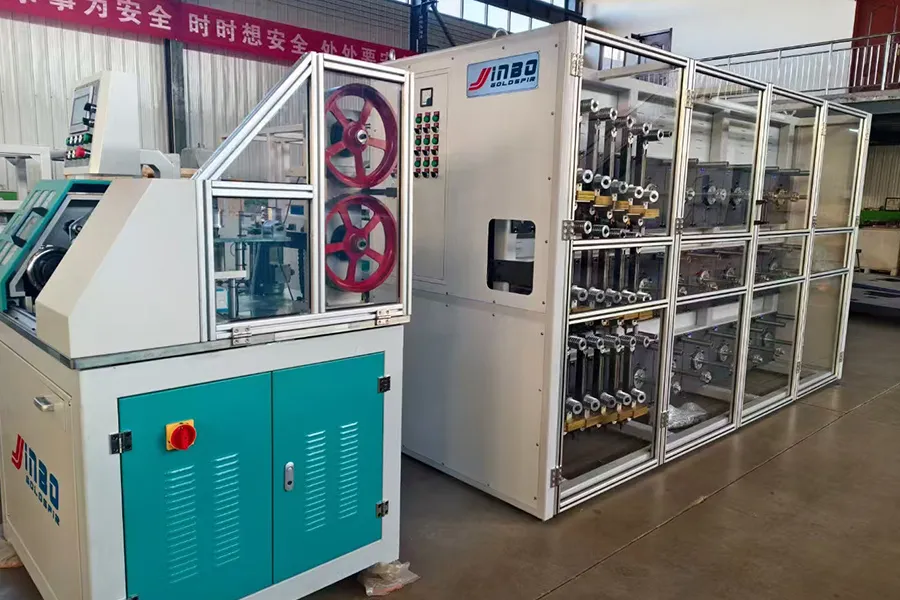

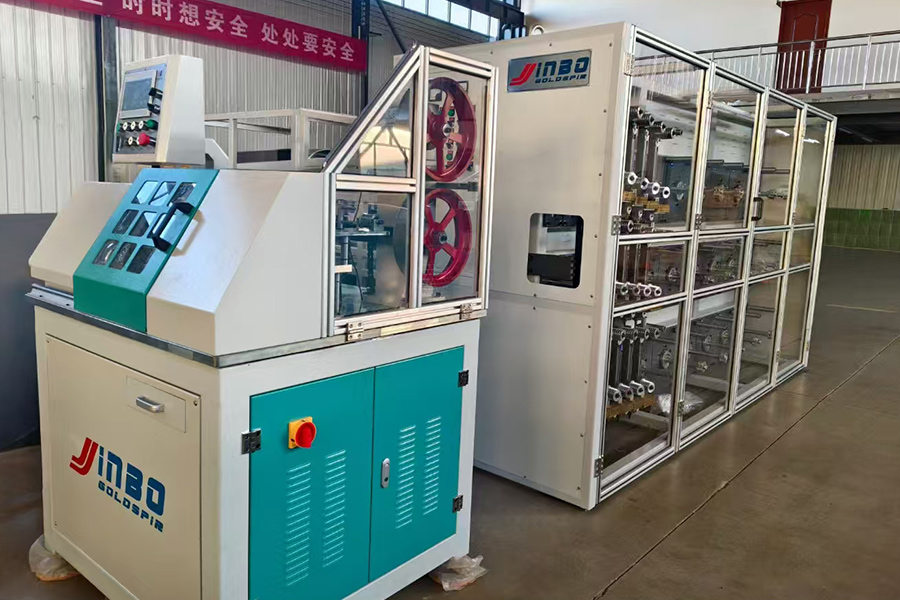

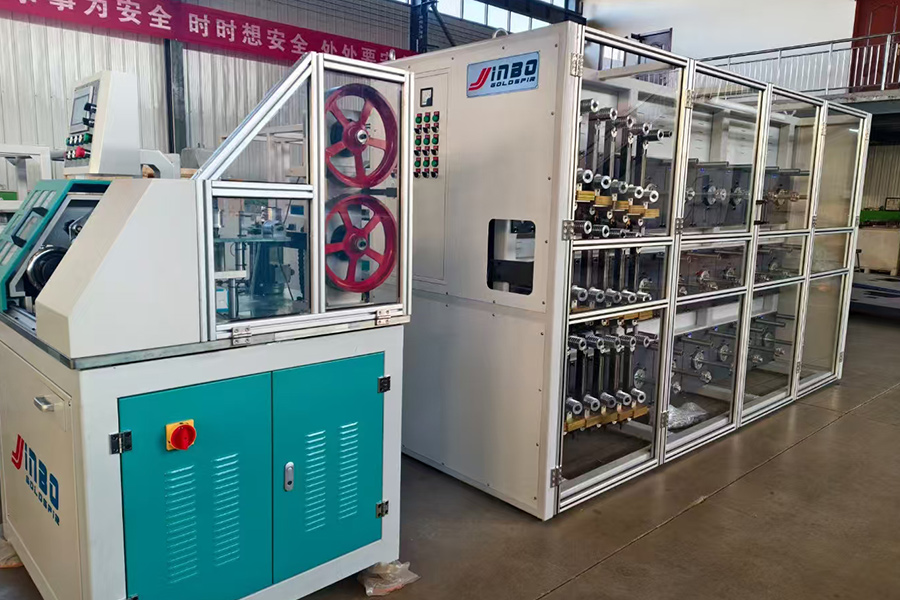

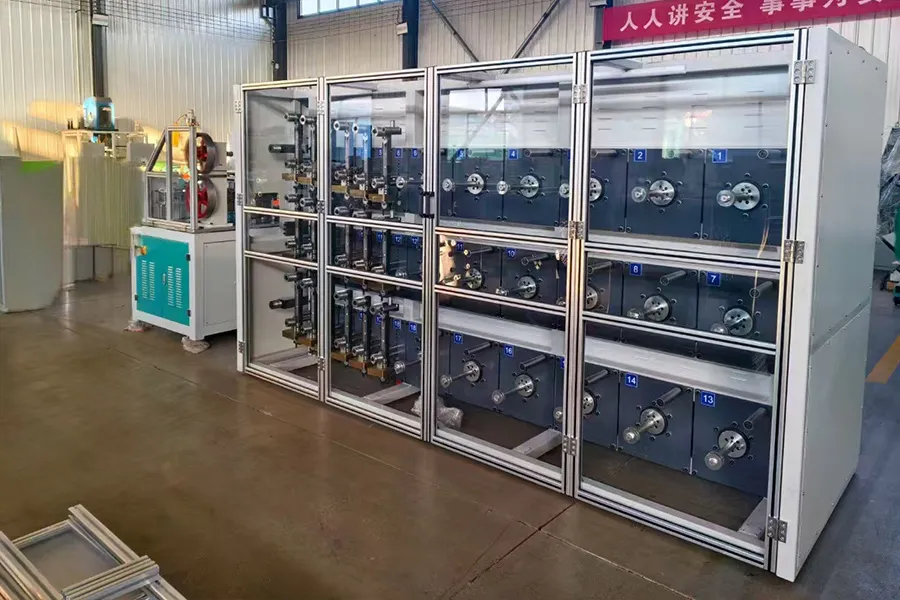

Our company's active pay-off stranding machine adopts the synchronous control method of winding and unwinding servo motors, and the winding speed is synchronized with the unwinding speed. The following are the advantages of this design: 1. It effectively reduces the pulling damage of the traditional passive tension stranding machine to the steel wire; 2. Because the equipment adopts the synchronous control method of winding and unwinding servo motors, the linear speed of the equipment can be further increased to 10 meters per second; 3. The drape difference is further optimized during the production process, and the drape difference of 8 strands can be within 5mm; 4. The traditional stranding process is a passive pay-off method, and the force on the steel wire is similar to sliding friction. After stranding, the temperature of the steel wire bobbin is very high, which is easy to affect the performance of the steel wire. The active pay-off method adopted by our company is similar to rolling friction. The temperature of the steel wire bobbin after stranding is basically the same as the original steel wire temperature, which has little effect on the performance of the steel wire.
