Horizontal pipe forming machine for suction and discharge hoses and industrial hoses
Product Inquiry
Horizontal pipe forming machine for suction and discharge hoses and industrial hoses
Horizontal pipe forming machine for suction and discharge hoses and industrial hoses
[ Overview ]
[ Configuration ]
[ Technical Points ]
[ Overview ]
This product mainly produces industrial hoses such as chemical hoses, suction and discharge hoses, sandblasting hoses, dredging hoses, and marine floating hoses. This equipment is divided into two structures, one is a horizontal forming machine and the other is a vertical forming machine. Both can complete the manufacturing of industrial hoses with high quality. With the changes in the international market, more and more pipe manufacturers have ordered the pipe forming machines produced by our company. Our company has been developing and producing this equipment for 20 years, and a series of production and process problems have been thoroughly improved during this period.
[ Configuration ]

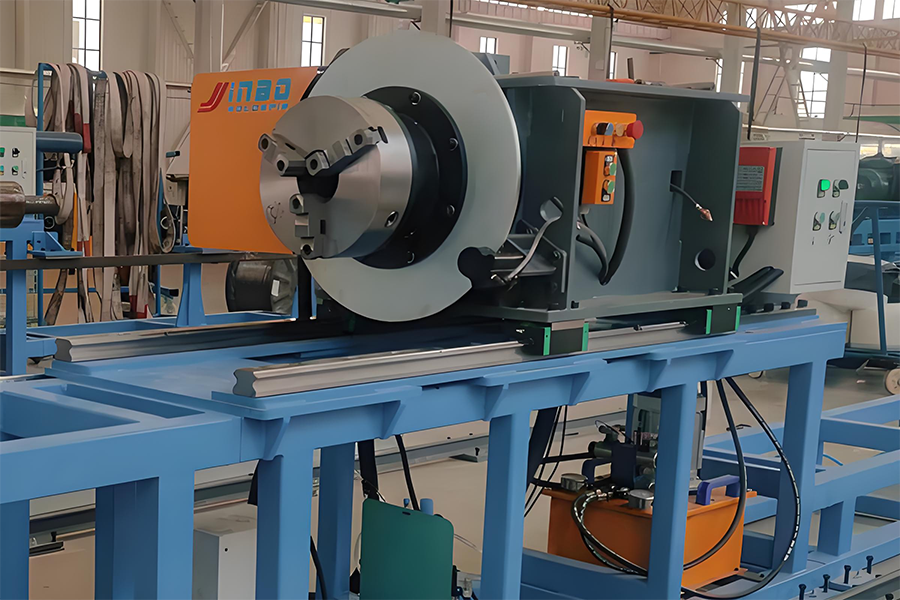

| 01 | 2 rotating heads |
|---|---|

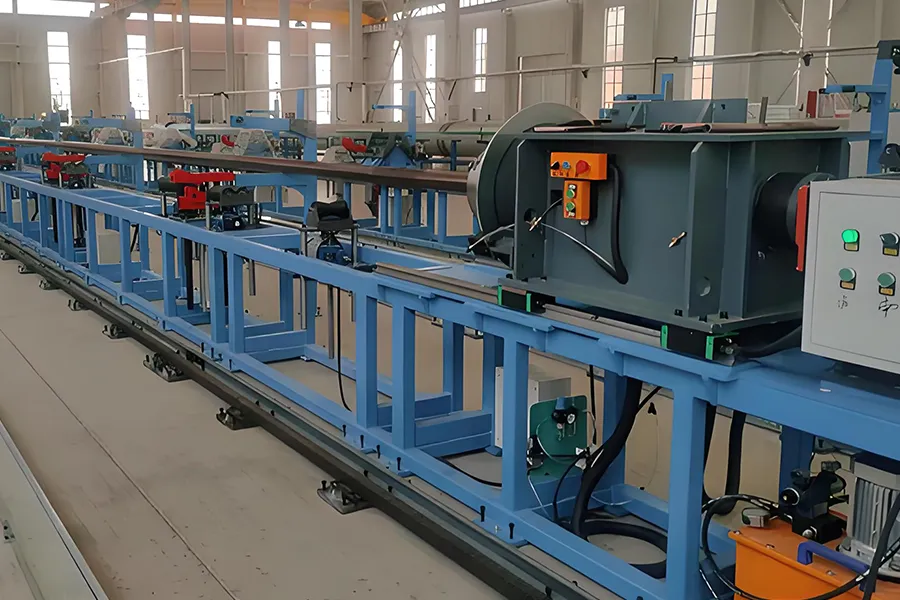

| 02 | Main frame 70 meters (connected in 6-meter sections, including rotating head bracket) |
| 03 | 1 walking work trolley |
| 04 | 15 isolation oil working rollers (nylon material) |

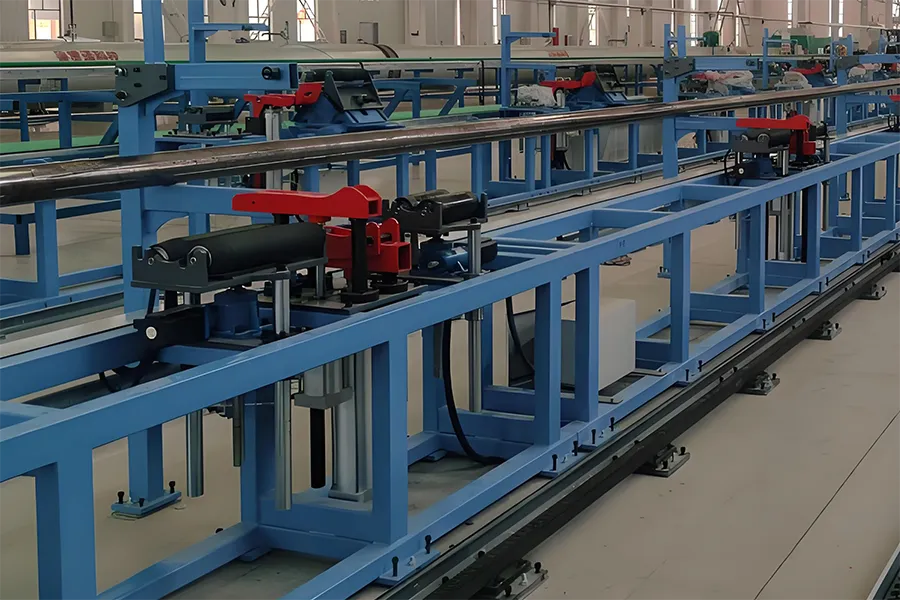

| 05 | 15 working rollers (rubber material) |
| 06 | The walking trolley is equipped with standard parts such as walking rails, walking racks, walking drag chains, cables, etc. |

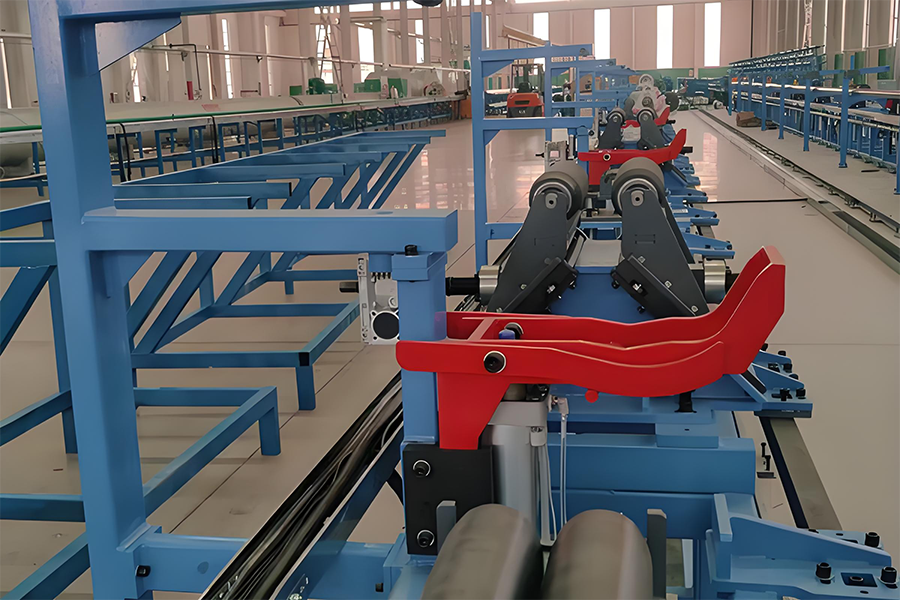

| 07 | F-type pipe storage rack + pipe turning bracket 15 sets |
[ Technical Points ]
This product is a patented product independently developed by our company. It changes the winding method of the traditional horizontal forming machine. The vertical forming machine adopts the method that the tube body does not rotate, and the sheets and wires are hung on the rotating disk for rotational winding, which greatly improves the efficiency of tube winding. In addition, this equipment adopts full servo control. The first major advantage is that the tension of all sheets and wires is a constant value, which makes up for the defect of different tensions of the large and small axes of sheets and wires. The second major advantage is that while improving the efficiency, the accuracy of the tube is greatly improved because the instability of the tube caused by the rotation of the tube is eliminated.
